OptiHorizon

Powered by Cortizo

OptiHorizon

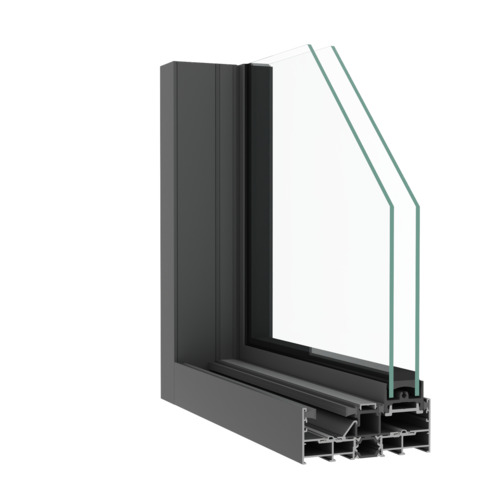

Specifications

  • Frame depth: 4⅝ in 2-rail frame

    7⅛ in 3-rail frame

    Sash depth: 1½ in

    Central node: 1 in

  • Ufactor ≥ 0.23 Btu/h·ft²·F

  • 1⅛ in

  • 41 dB

Certifications

Air resistance: Class 4

Water resistance: Class 7A

Wind resistance: Class C5

Details

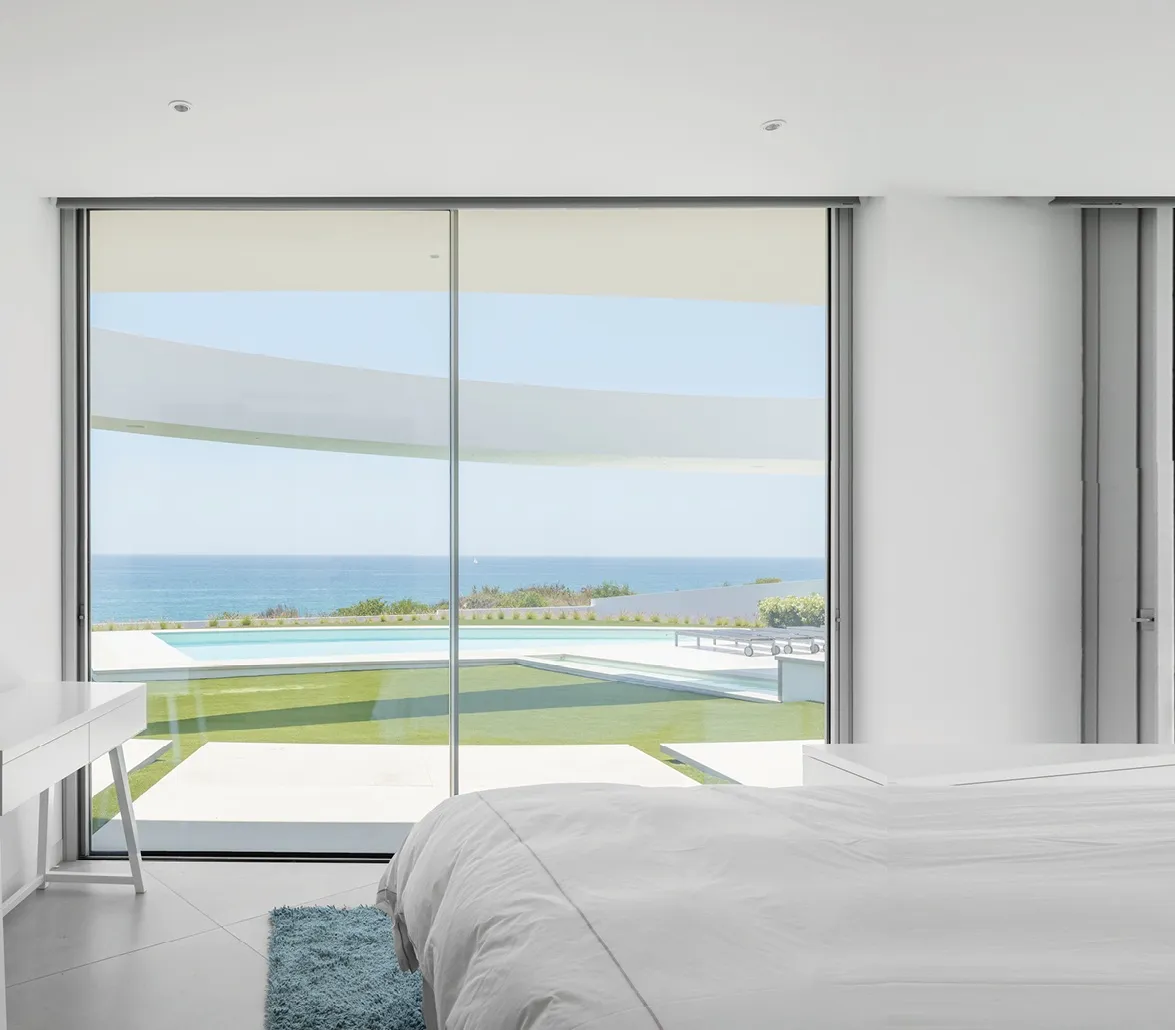

This OptiHorizon system with thermal barrier stands out with its avant-garde design which maximizes light and minimizes the visible aluminum surfaces. The bottom, top and side frames can be integrated into the surrounding structural elements, allowing sashes to be joined at seemless 90º corners as well as full openings to be achieved by hiding the sliding elements inside neighbouring walls. Durable and easy to maintain, the system offers flexibility in use and the possibility to replace the glass or aluminum profiles in case of damage over time.

Colors

We offer a wide range of colors, including the RAL K7 color palette, as well as special finishes such as anodized colors, textured powder coatings, wood effect powder coatings, and more.

  • 9005
  • 9006
  • 7021
  • 9016
  • 9010
  • 7009
  • 7016
  • 7023
  • 7035
  • 6005
  • 3013
  • 3009
  • 7042
  • 6012
  • 5023

Automatic profile processing
in Schirmer Processing Centers
