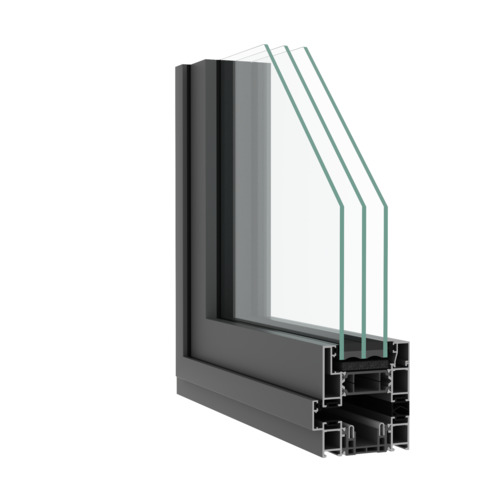

OptiFold Vivid

Powered by Cortizo

Specifications

  • Frame depth: 3⅛ in

    Sash depth: 3⅛ in

  • Ufactor ≥ 0.14 Btu/h·ft²·F

  • 1⅞ in

Certifications

Air resistance: Class 5

Water resistance: Class E750

Wind resistance: Class C3

SASH MAXIMUM DIMENSION

47¼ in x 118⅛ in

Details

Separate environments while seamlessly unifying spaces with this bi-fold door system, featuring a 3⅛ inches deep frame. As an evolution of the Bi-fold series, it delivers exceptional thermal and acoustic performance, thanks to its 1¾ inch thermal break and glazing capacity of up to 1⅞ inch. Additionally, its slim 4 ⅜ inches central section maximizes the glazed surface, flooding interior spaces with natural light.

Colors

We offer a wide range of colors, including the RAL K7 color palette, as well as special finishes such as anodized colors, textured powder coatings, wood effect powder coatings, and more.

  • 9005
  • 9006
  • 7021
  • 9016
  • 9010
  • 7009
  • 7016
  • 7023
  • 7035
  • 6005
  • 3013
  • 3009
  • 7042
  • 6012
  • 5023

Automatic profile processing
in Schirmer Processing Centers
